PAC PRODUCTS FIRE RATING

SYSTEM TYPE :

SYSTEM DESIGN :

Wall Frame Type :

PAC PRODUCT :

FIRE RATING HOURS :

UL Design Number :

Clear filters

SYSTEM TYPE	SYSTEM DESIGN	Wall Frame Type	PAC PRODUCT	FIRE RATING HOURS	UL Design Number	Image	UL Link	DWG	Insualtion Allowed	Min. Layers of gyp	Plywood subfloor only
Ceiling	Steel Open Web Truss		RSIC-1	1 Hour	G501		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-V	1 Hour	G501		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-1	1 Hour	G502		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-V	1 Hour	G502		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	G503		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	G504		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	G505		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-1	1 Hour	G507		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-V	1 Hour	G507		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	G510		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-1	3 Hour	G512		UL DESIGN		N	3	N
Ceiling	Steel Open Web Truss		RSIC-1	3 Hour	G524		UL DESIGN		N	3	N
Ceiling	Steel Open Web Truss		RSIC-1	3 Hour	G525		UL DESIGN		N	3	N
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	G534		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-V	1 Hour	G534		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G535		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G536		UL DESIGN		Y	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G551		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G552		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G556		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SIX	2 Hour	G556		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G557		UL DESIGN		Y	2	N
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	G558		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G560		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	G561		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G578		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	G588		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	H501		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	H501		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	H501		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	H502		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	H502		UL DESIGN		N	1	N
Ceiling	Steel Open Web Truss		RC-1 BOOST	1 Hour	H502		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	H504		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	H504		UL DESIGN		N	1	N
Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	H505		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	2 Hour	H505		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	2 Hour	H505		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	2 Hour	H507		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	2 Hour	H507		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	2 Hour	H509		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	2 Hour	H509		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	2 Hour	H511		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	2 Hour	H511		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	2 Hour	H513		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	2 Hour	H513		UL DESIGN		N	2	N

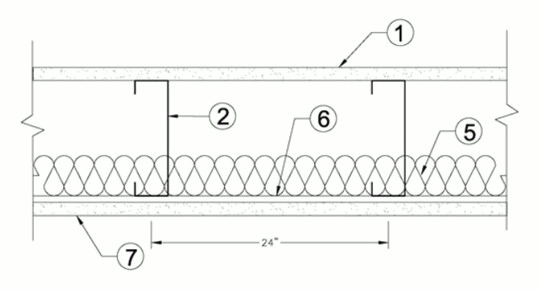

Ceiling	Steel "C" section Joist		RSIC-1	2 Hour	H514		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	2 Hour	H515		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	2 Hour	H515		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	2 Hour	H516		UL DESIGN		N	2	N
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	2 Hour	H516		UL DESIGN		N	2	N

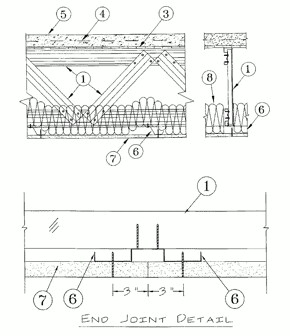

Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	H521		UL DESIGN		N	2	N

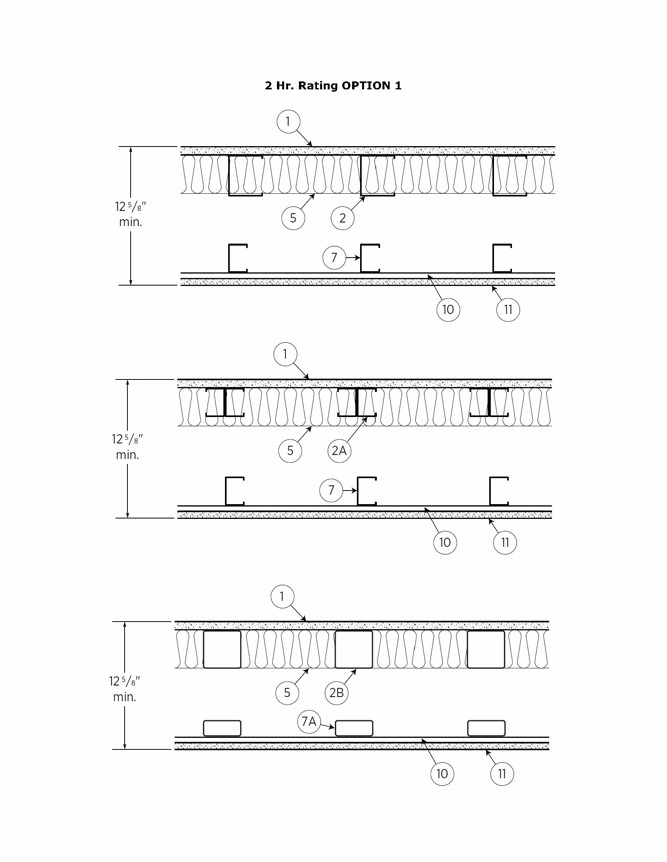

Ceiling	Seprate Ceiling Framing		RSIC-1	2 Hour	H522		UL DESIGN		N	2	N
Ceiling	Seprate Ceiling Framing		RSIC-SI-1 ULTRA	2 Hour	H522		UL DESIGN		N	2	N
Ceiling	Seprate Ceiling Framing		RSIC-SI-CRC EZ	2 Hour	H522		UL DESIGN		N	2	N

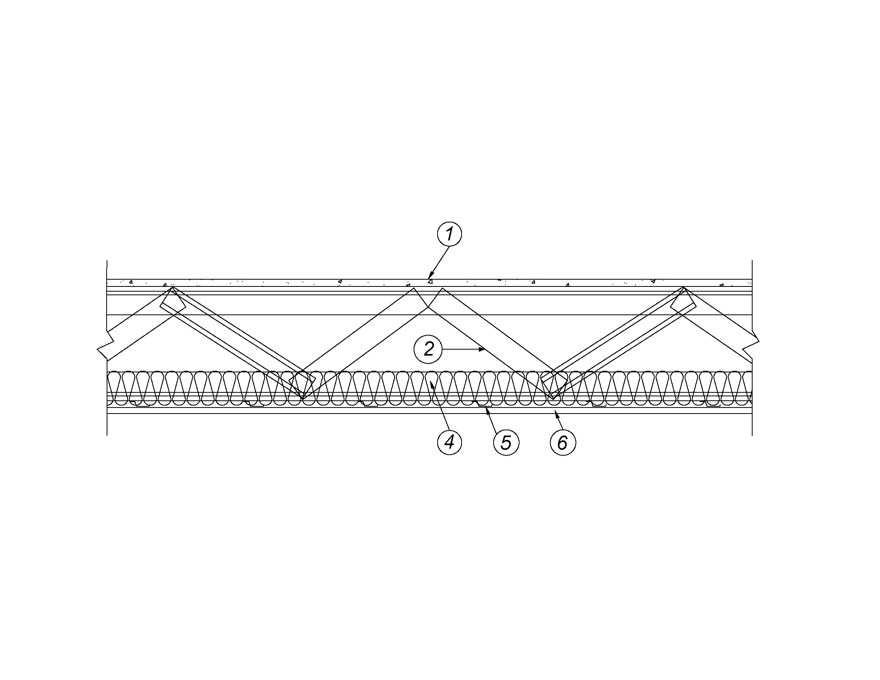

Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	H524		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	2 Hour	H524		UL DESIGN		N	2	N
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	2 Hour	H524		UL DESIGN		N	2	N

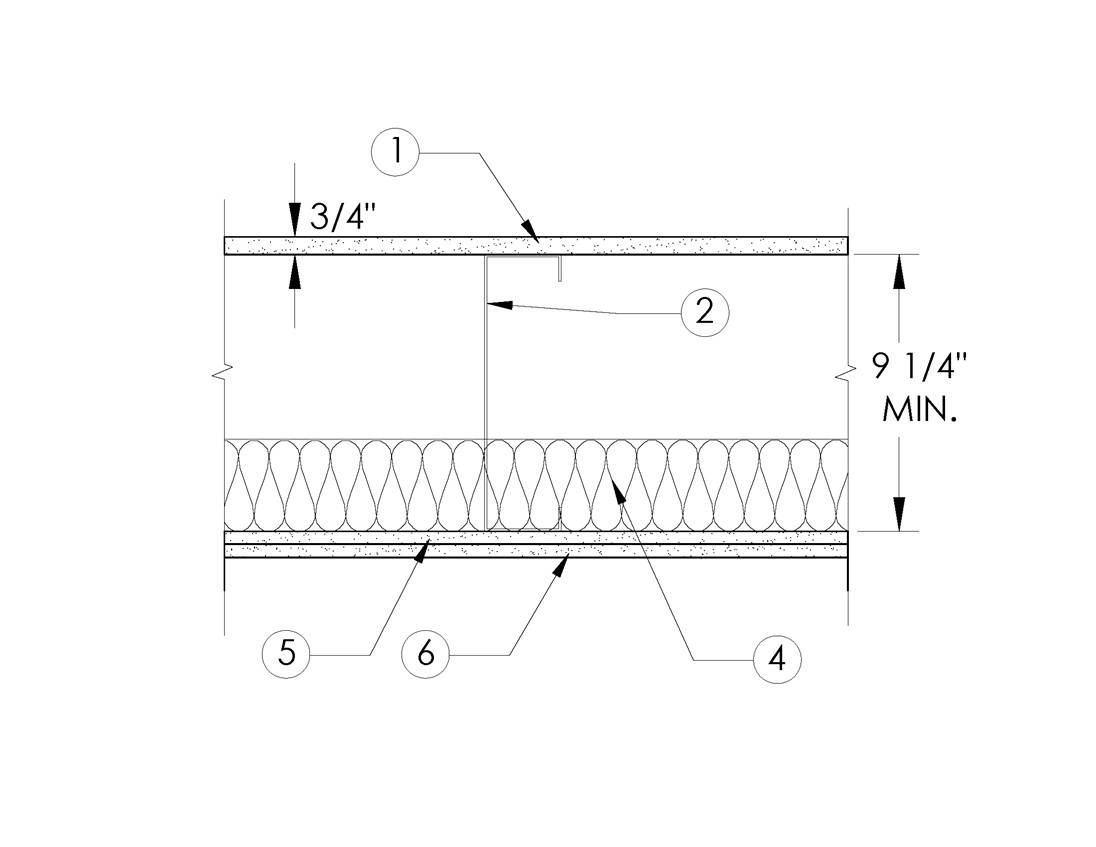

Ceiling	Steel Open Web Truss		RSIC-1	2 Hour	H527		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0031		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-WFI	2 Hour	HW-D-0031		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U	2 Hour	HW-D-0031		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0034		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0043		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0044		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0060		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0079		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0103		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-0447		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-WFI	2 Hour	HW-D-0447		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U	2 Hour	HW-D-0447		UL DESIGN		N	2	N
Wall	Steel Head of Wall		RSIC-U HD	2 Hour	HW-D-1011		UL DESIGN		N	2	N
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L502		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L502		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L502		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	2 Hour	L505		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L510		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L510		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	2 Hour	L511		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	2 Hour	L511		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L515		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L515		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L515		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SIX	1 Hour	L516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L517		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L517		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L517		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	L518		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	L518		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	L518		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	L518		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SIX	1 Hour	L518		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L520		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L520		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L521		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L521		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L521		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SIX	1 Hour	L521		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L523		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L523		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L523		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L523		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L523		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-1	1 Hour	L527		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L527		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L527		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	L527		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	L527		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L528		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L528		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L528		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L528		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L528		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L532		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L532		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L532		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L533		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L533		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L533		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L534		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L534		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L534		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L534		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L534		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L535		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L535		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L535		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	2 Hour	L541		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	2 Hour	L541		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	2 Hour	L541		UL DESIGN		Y	2	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	2 Hour	L541		UL DESIGN		Y	2	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L542		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L542		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L542		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L545		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L545		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L545		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SIX	1 Hour	L546		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	L547		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	L547		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	L547		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	L547		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L549		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L549		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L558		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L558		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L558		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L560		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L560		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L562		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L562		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L562		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L562		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L562		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L563		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L563		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L563		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	L564		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	L564		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L565		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L565		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L567		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L567		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	L568		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	L568		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L569		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L569		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L569		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L569		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L569		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-V	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-WHI	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	L570		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	L573		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	L573		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	L573		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L574		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L574		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L574		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L574		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L574		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L576		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L576		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L576		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L576		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L579		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L579		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L579		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L579		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L579		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-1 ULTRA	1 Hour	L580		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-SI-CRC EZ	1 Hour	L580		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L582		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L583		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L583		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SIX	1 Hour	L583		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L585		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L585		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L585		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L586		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L586		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L586		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-WHI	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SIX	1 Hour	L587		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	L589		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	L589		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	L589		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	L589		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L590		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L590		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L590		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L590		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L590		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	L592		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	L592		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L592		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-WHI	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	L593		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	L597		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	L597		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	L598		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	L598		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	L601		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	M501		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	M501		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M501		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M501		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M501		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-V	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SIX	1 Hour	M502		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M503		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M503		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M503		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	M506		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-V	1 Hour	M506		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	M506		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	M506		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M506		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	M508		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	M508		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M508		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M508		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M508		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SIX	1 Hour	M509		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	2 Hour	M510		UL DESIGN		Y	2	Y
Ceiling	Wood Open Web truss		RSIC-V	2 Hour	M510		UL DESIGN		Y	2	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	2 Hour	M510		UL DESIGN		Y	2	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	M513		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	M513		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	M514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	M514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	M514		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	M514		UL DESIGN		Y	1	Y
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	M515		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M516		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M516		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M516		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	M518		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	M518		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	M518		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	M519		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	M519		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	M519		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M520		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M520		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M520		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	2 Hour	M521		UL DESIGN		Y	2	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M522		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M522		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M522		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M523		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M524		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M524		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M524		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	M525		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	M529		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	M529		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-1	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-V	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SIX	1 Hour	M531		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	M532		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	M532		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	M532		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M532		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SIX	1 Hour	M532		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	M535		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	M535		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M535		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	M536		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	M536		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-1 ULTRA	1 Hour	M537		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RSIC-SI-CRC EZ	1 Hour	M537		UL DESIGN		Y	1	Y
Ceiling	Wood Solid Joist		RC-1 BOOST	1 Hour	M537		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M539		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M539		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M539		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-1	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-V	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SIX	1 Hour	M540		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-1 ULTRA	1 Hour	M541		UL DESIGN		Y	1	Y
Ceiling	Steel Open Web Truss		RSIC-SI-CRC EZ	1 Hour	M541		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M544		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-1	1 Hour	M544		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-1 ULTRA	1 Hour	M545		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M545		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-1 ULTRA	1 Hour	M546		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RSIC-SI-CRC EZ	1 Hour	M546		UL DESIGN		Y	1	Y
Ceiling	Wood "I" Joist		RC-1 BOOST	1 Hour	M546		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RSIC-SI-CRC EZ	1 Hour	M549		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M551		UL DESIGN		Y	1	Y
Ceiling	Wood Open Web truss		RC-1 BOOST	1 Hour	M552		UL DESIGN		Y	1	Y
Roof	Steel Roof Truss		RSIC-1	2 Hour	P519		UL DESIGN		N	2
Roof	Wood Roof Truss		RSIC-1	1 Hour	P522		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-V	1 Hour	P522		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-1	1 Hour	P538		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-V	1 Hour	P538		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-1	1 Hour	P545		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-V	1 Hour	P545		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-1	1 Hour	P556		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-V	1 Hour	P556		UL DESIGN		Y	1
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	P561		UL DESIGN		Y	1
Ceiling	Steel "C" section Joist		RSIC-1	1 Hour	P562		UL DESIGN		Y	1
Roof	Wood Roof Truss		RSIC-1	2 Hour	P571		UL DESIGN		Y	2
Roof	Wood Roof Truss		RSIC-V	2 Hour	P571		UL DESIGN		Y	2
Roof	Wood Roof Truss		RSIC-1	2 Hour	P573		UL DESIGN		Y	2
Wall	Wood Framed Wall	Single Stud	RSIC-1	2 Hour	U301		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	2 Hour	U301		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U305		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-V	1 Hour	U305		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U305		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U309		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U309		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U311		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U311		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	2 Hour	U316		UL DESIGN		Y	2
Wall	Wood Framed Wall	Double Stud	RSIC-1	1 Hour	U320		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Double Stud	RC-1 BOOST	1 Hour	U320		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U327		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U331		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U331		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	2 Hour	U334		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	2 Hour	U334		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Stagger Stud	RSIC-1	1 Hour	U340		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Stagger Stud	RC-1 BOOST	1 Hour	U340		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Double Stud	RSIC-1	1 Hour	U341		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Double Stud	RC-1 BOOST	1 Hour	U341		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Double Stud	RSIC-1	2 Hour	U342		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Double Stud	RC-1 BOOST	2 Hour	U342		UL DESIGN	DWG	Y	2
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U344		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U344		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	U356		UL DESIGN	DWG	Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U356		UL DESIGN	DWG	Y	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U4103		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-V	2 Hour	U4103		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U4104		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-V	2 Hour	U4104		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	U4107		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	U4108		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U411		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-V	2 Hour	U411		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	U4111		UL DESIGN		N	2
Wall	Steel Shaft Wall		RSIC-1	2 Hour	U415		UL DESIGN		N	2
Wall	Steel Framed Wall	Shaft Wall	RSIC-1	2 Hour	U417		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	4 Hour	U419		UL DESIGN	DWG	N	3
Wall	Steel Framed Wall	Single Stud	RSIC-V	4 Hour	U419		UL DESIGN	DWG	N	3
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U421		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U423		UL DESIGN	DWG	N	2

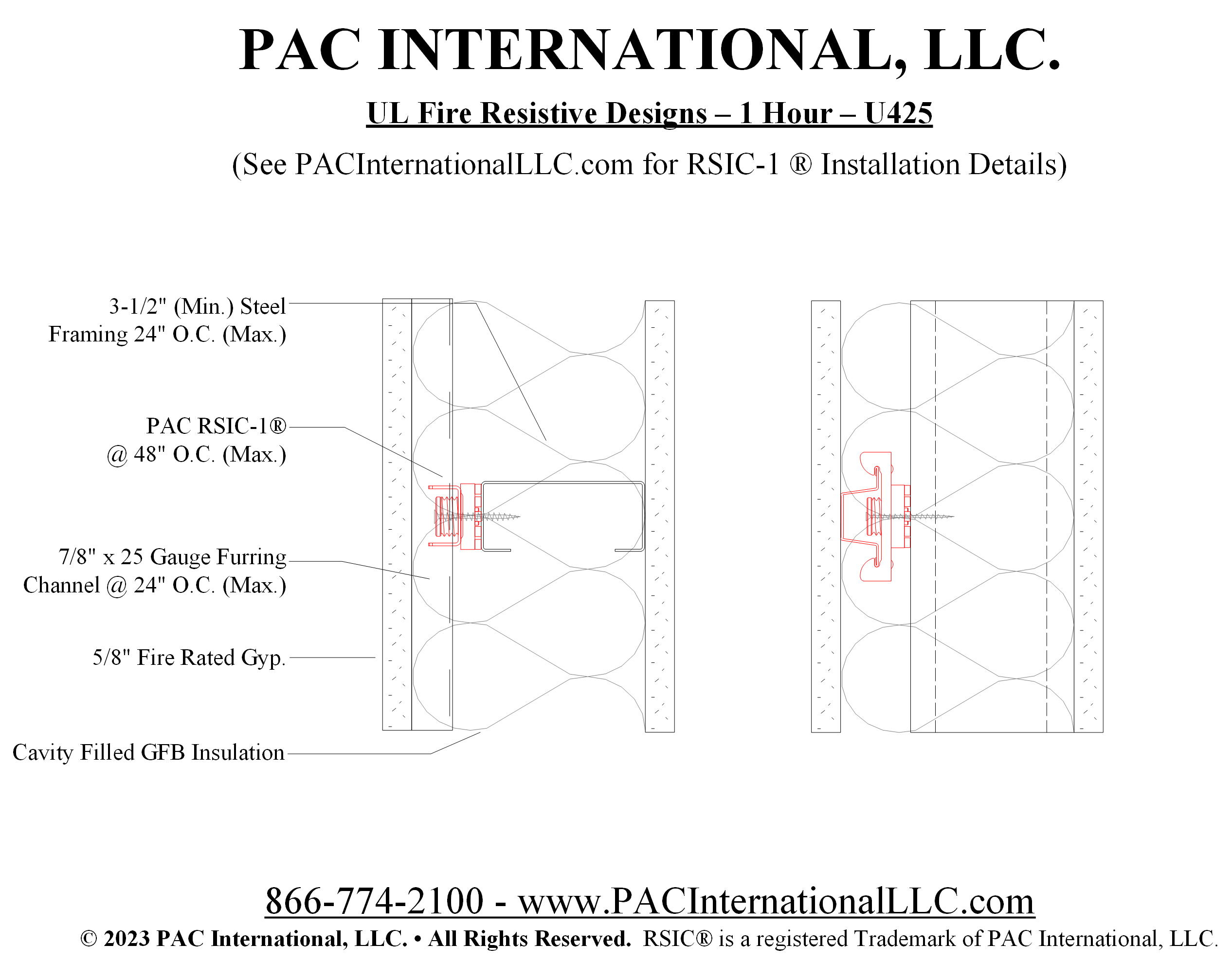

Wall	Steel Framed Wall	Single Stud	RSIC-1	1 Hour	U425		UL DESIGN	DWG	N	1

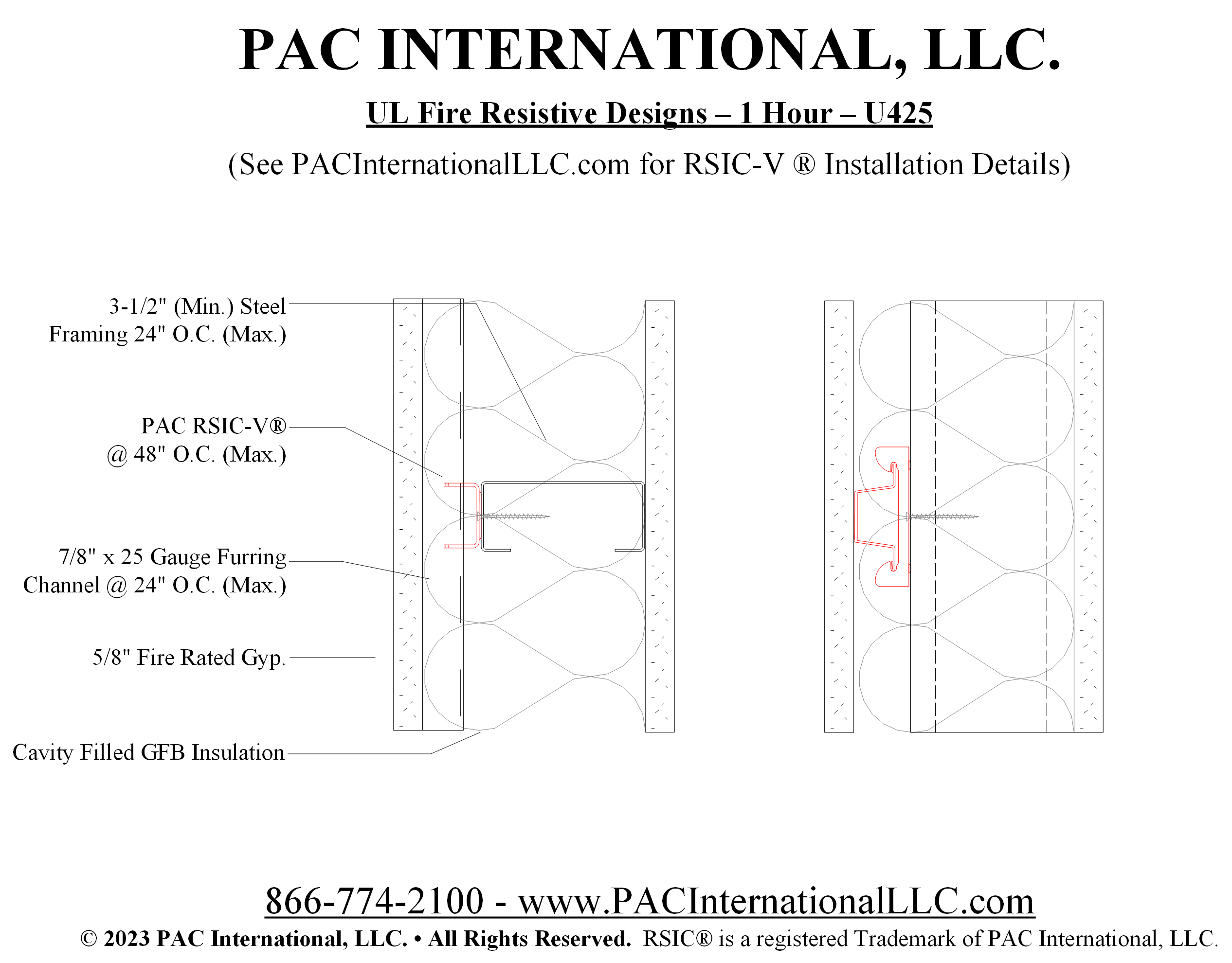

Wall	Steel Framed Wall	Single Stud	RSIC-V	1 Hour	U425		UL DESIGN		N	1
Wall	Steel Framed Wall	Single Stud	RC-1 BOOST	1 Hour	U425		UL DESIGN		N	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U440		UL DESIGN	DWG	N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	1 Hour	U451		UL DESIGN	DWG	N	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	U453		UL DESIGN	DWG	N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	1 Hour	U455		UL DESIGN	DWG	N	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	1 Hour	U465		UL DESIGN	DWG	N	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	1 Hour	U473		UL DESIGN	DWG	N	1
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	U493		UL DESIGN	DWG	N	2
Wall	Steel Framed Wall	SIP	RSIC-1	1 Hour	U524		UL DESIGN		N	1
Wall	Steel Framed Wall	SIP	RSIC-V	1 Hour	U524		UL DESIGN		N	1
Wall	CMU Block		RSIC-1	4 Hour	U910		UL DESIGN		N	3
Wall	CMU Block		RSIC-1	4 Hour	U914		UL DESIGN		N	3
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	V310		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-V	1 Hour	V310		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	V310		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	3/4 Hour	V316		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	V319		UL DESIGN		Y	1
Wall	Wood Framed Wall	Stagger Stud	RSIC-1	2 Hour	V323		UL DESIGN		Y	2
Wall	Wood Framed Wall	Stagger Stud	RSIC-V	2 Hour	V323		UL DESIGN		Y	2
Wall	Wood Framed Wall	Stagger Stud	RC-1 BOOST	2 Hour	V323		UL DESIGN		Y	2
Wall	Wood Framed Wall	Double Stud	RC-1 BOOST	2 Hour	V324		UL DESIGN		Y	2
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	V346		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-V	1 Hour	V346		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	V346		UL DESIGN		Y	1
Wall	Steel Framed Wall	Single Stud	RSIC-1	4 Hour	V438		UL DESIGN		N	3
Wall	Steel Framed Wall	Single Stud	RSIC-V	4 Hour	V438		UL DESIGN		N	3
Wall	Steel Framed Wall	Shaft Wall	RSIC-1	1 Hour	V455		UL DESIGN		N	1
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	V469		UL DESIGN	DWG	N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	3 Hour	V478		UL DESIGN		N	3
Wall	Steel Framed Wall	Shaft Wall	RSIC-1	1 Hour	V481		UL DESIGN		N	1
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	V488		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-V	2 Hour	V488		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	4 Hour	V489		UL DESIGN	DWG	N	3
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	V490		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	V496		UL DESIGN	DWG	N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	4 Hour	V498		UL DESIGN		N	3
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	3/4 Hour	W301		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-1	1 Hour	W307		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RSIC-V	1 Hour	W307		UL DESIGN		Y	1
Wall	Wood Framed Wall	Single Stud	RC-1 BOOST	1 Hour	W307		UL DESIGN		Y	1
Wall	Steel Shaft Wall		RSIC-1	2 Hour	W419		UL DESIGN		N	2
Wall	Steel Framed Wall	Double Stud	RSIC-1	2 Hour	W425		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	4 Hour	W440		UL DESIGN		N	3
Wall	Steel Framed Wall	Single Stud	RSIC-1	2 Hour	W445		UL DESIGN		N	2
Wall	Steel Framed Wall	Single Stud	RSIC-1	3 Hour	W469		UL DESIGN		N	3

SYSTEM TYPE:

SYSTEM DESIGN:

Wall Frame Type:

PAC PRODUCT:

FIRE RATING HOURS:

UL Design Number:

Image:

UL Link:

DWG:

Insualtion Allowed:

Min. Layers of gyp:

Plywood subfloor only:

Fire-Resistance Rating Selector

Depending on state guidelines and what your next building project looks like, there can be all manner of fire-resistance rating factors to consider. Obviously, safety is the number one priority, but ensuring your building is up to code follows that same line of thought. Our fire-resistance rating selector ensures that decision-making is a breeze by showing you exactly how resistant each of our sound isolation products are. Our selector will give you a snapshot of info for each product, clicking further on each individual item will give you a more in-depth description of the product and the specifications associated with it. If have more questions or concerns, please don’t hesitate to reach out. Whether you need help finding the nearest manufacturer or aren’t 100 percent certain about your choice, we are more than happy to assist you.
