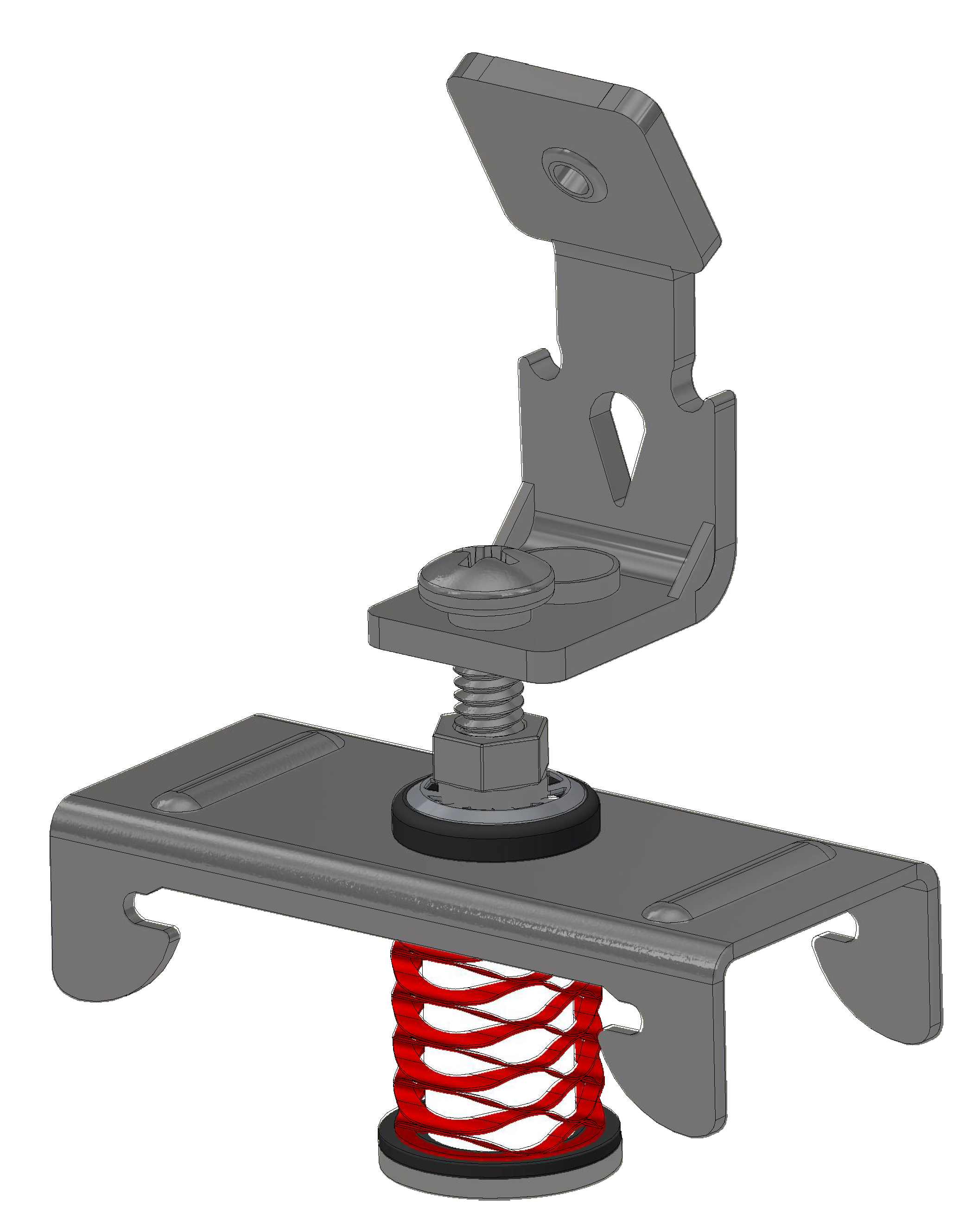

RSIC-SI-X ADM Multi Clip
The RSIC-SI-X-ADM Multi Clip designed for use
with Concrete, Steel or Wood framed ceilings where
noise control is required. The RSIC-SI-X-ADM Multi Clip
isolator is a labor saving adjustable mount ceilings.
Fasten the clip to the framing or concrete and and spin
the isolator to adjust up and down for a level ceiling. With
an Acoustical design load rating of 7 lbs to 25 lbs per
isolator, the RSIC-SI-X-ADM Multi Clip clip can support
up to two layers of 5/8″. The spacing at 16″ x 48″ oc is the
same for 1 or 2 layers of gypsum board The RSIC-SI-X ADM Multi Clip clip attaches directly to the bottom of the
framing or concrete, or to the side of a wood, or steel joist
decoupling the gypsum board from the structure stopping
STC and IIC vibrations from entering the space below.
