SOUND TEST DATA
FIRE TEST DATA

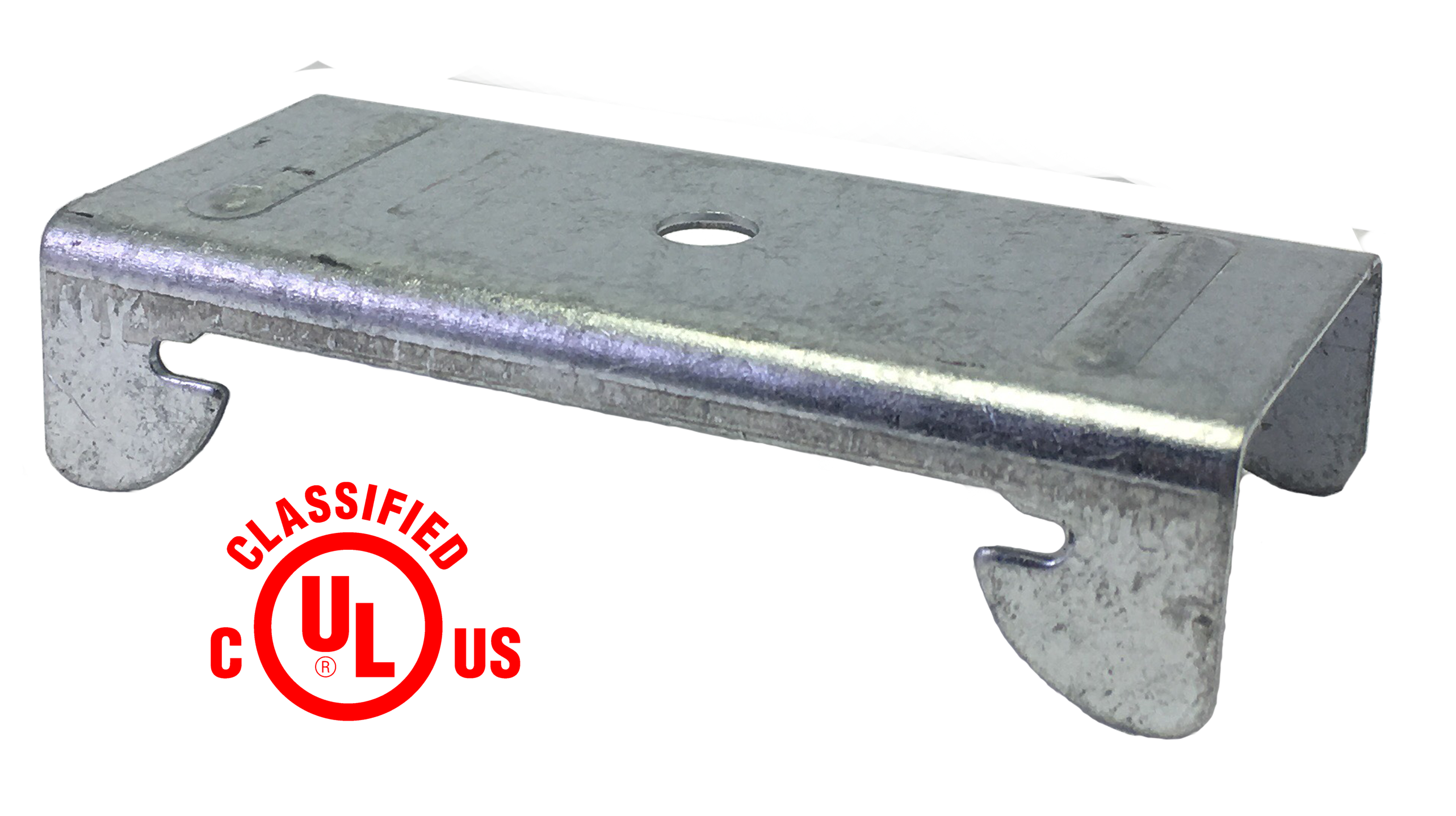

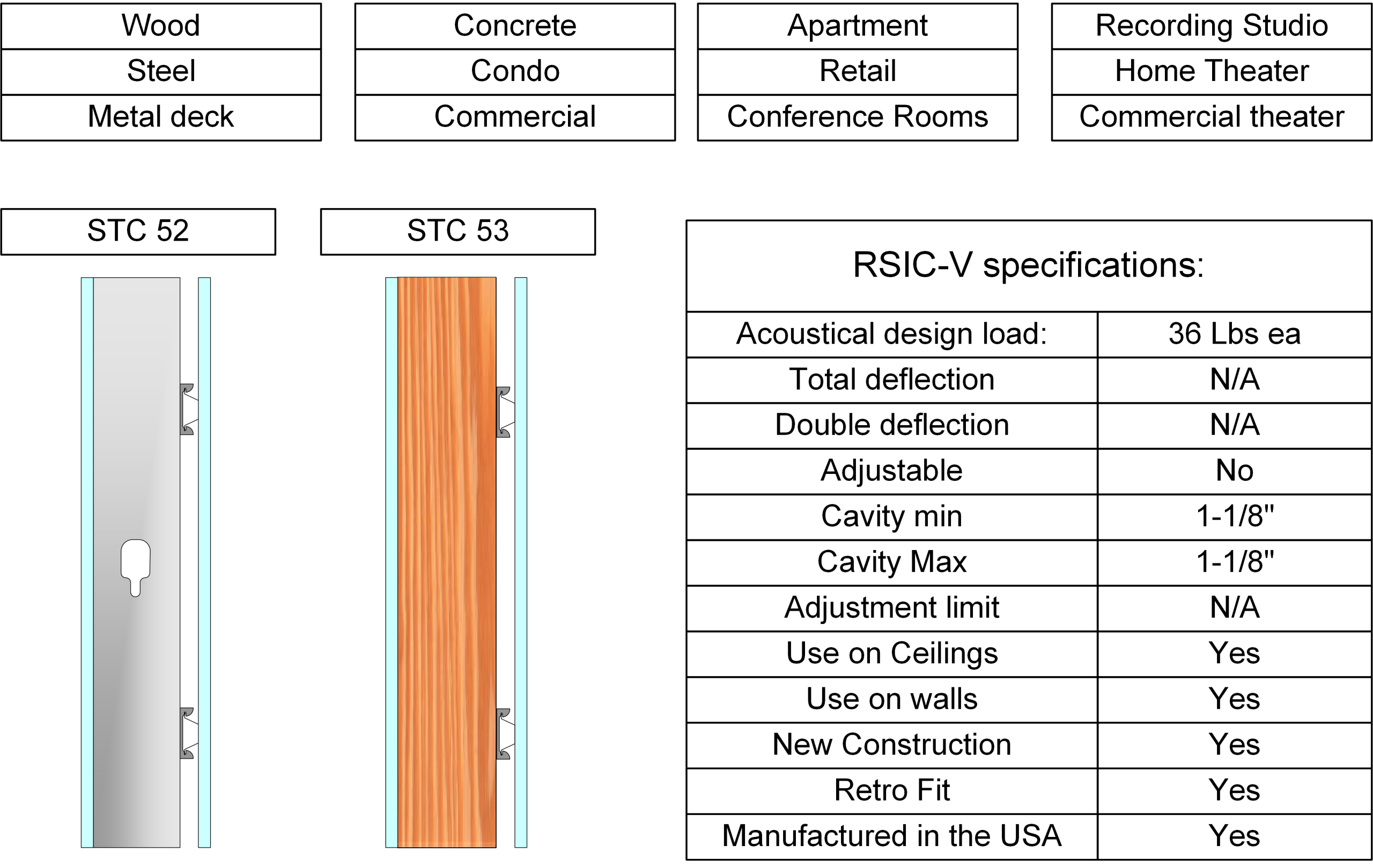

The RSIC-V® The RSIC-V is designed for use with any wood, steel or concrete application where noise control is required. This includes, wood framed, steel framed, CMU, or concrete wall and or ceiling systems. The RSIC-V assembly decouples the gypsum board from the structure, giving the assembly enhanced acoustical performance. With an Acoustical design load rating of 36 lbs per isolator, the RSIC-V clip can support up to two layers of 5/8″ gypsum board when spaced no more that 24″ x 48″ oc. The RSIC-V clip fastens directly to the framing or structure. The RSIC-V decouples the gypsum board from the structure stopping STC and IIC vibrations from entering the space adjacent.
